CUT&Tag

CUT&Tag (Cleavage Under Targets and Tagmentation) offers a novel approach to pursue epigenetics. The method is designed to map genome wide histone variants and post-translational modifications, transcription factor binding sites, and chromatin-associated complexes.

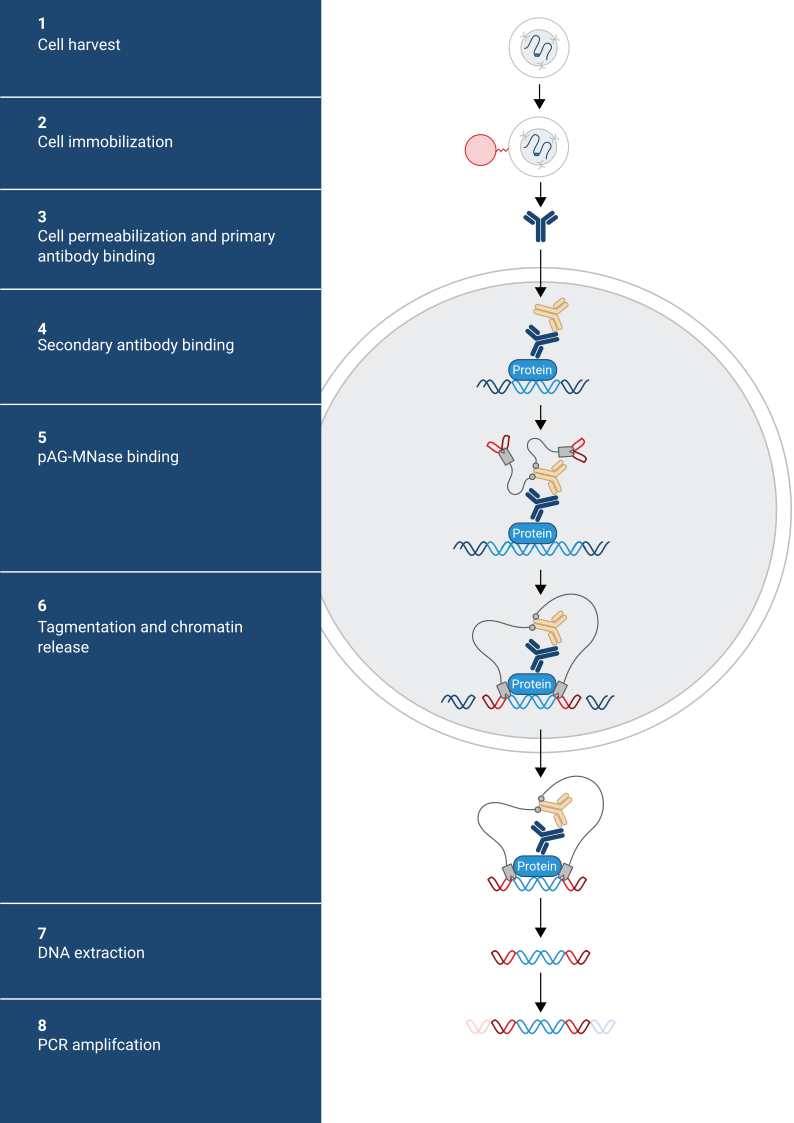

CUT&Tag Workflow

Workflow 1. Cell immobilization 2. Cell permeabilization 3. Primary AB binding, Secondary AB binding 4. pA-Tn binding 5. Tagmentation 6. Chromatin release

CUT&Tag is performed in situ on immobilized, intact cells without crosslinking. DNA fragmentation is achieved through tagmentation of genomic DNA by a hyperactive Tn5 transposase that is loaded with sequencing adapter duplexes and fused to Protein A and/or protein G (pA/G-Tn5). The fusion protein is tethered via its Protein A and/or Protein G moieties to an antibody against the desired target, thus leading to tagmentation in the vicinity of the targeted antigen. CUT&Tag products are suitable for library generation for next generation sequencing (NGS) without any further end polishing steps.

Advantages of CUT&Tag

  • Performed In situ on non-fixed cells; no chromatin fragmentation necessary.
  • Low background and high sensitivity require low sequencing depth.
  • No end-polishing and sequencing adapter ligation steps necessary.
  • Possible with low cell numbers down to 100 cells depending on the antigen.
  • Simple, fast, amenable to automation.
  • Accurate quantitation using carry-over E. coli DNA from the pAG-Tn5 purification.

CUT&RUN + CUT&Tag Handbook

Get your free copy of our brand new handbook for CUT&RUN and CUT&Tag!

Download handbook!

Products for CUT&Tag

antibodies-online offers flexible solutions for your CUT&Tag experiments. Either pick yourself control antibodies, secondary antibodies or magnetic beads from our CUT&Tag product offer contact our team of biologist for a finely tuned set of reageants alongside with an optimizied protocol.

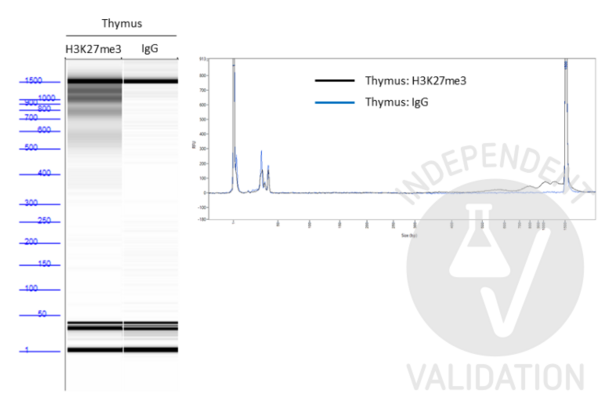

Guinea Pig anti-rabbit IgG (ABIN101961)
  • CUT&Tag secondary antibody
  • Signal amplification in CUT&Tag
  • Efficient pAG-Tn5 Fusion Tethering
CUT&RUN Secondary Antibody ABIN101691

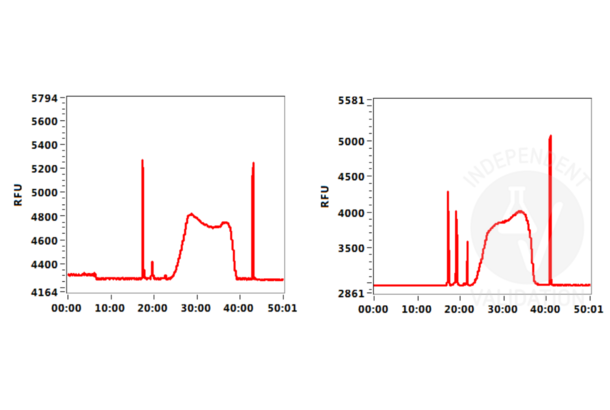

Magnetic Concanavalin A Beads (Agarose)
  • Suitable for CUT&Tag Assays
  • Superior handling compared to silica ConA beads, comparable performance
Magnetic ConA Beads (Agarose) for CUT&RUN/CUT&Tag ABIN6952467

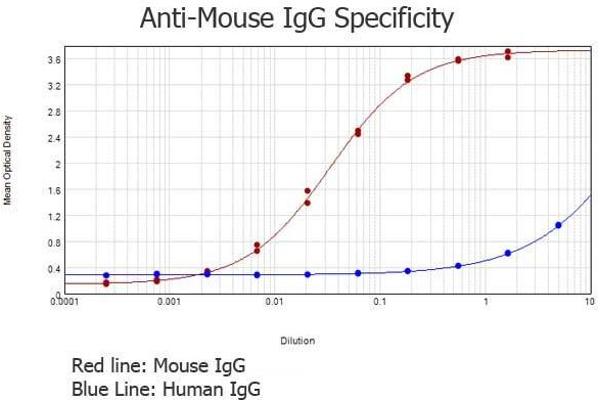

Rabbit anti-mouse IgG (ABIN101785)
  • Valdidated for CUT&RUN and CUT&tag
  • Detects specifically mouse IgG (H&L)
  • 3 PubMed Citations available
CUTANA pAG-MNase for ChIC/CUT&RUN ABIN6950951

Epigenetic Antibodies for CUT&Tag

antibodies-online offers antibodies against abundant histone modifications and transcriptionsfactors. They are suitable as positive control and important to assess the success of the CUT&Tag method.

Product
Source
Clonality
Epitope
Cat. No.
Delivery
Datasheet
Source Rabbit
Clonality Polyclonal
Epitope H3K27ac
Cat. No. ABIN2668475
Delivery 23至29个工作日
Datasheet Datasheet
Source Mouse
Clonality Monoclonal
Epitope H3K36me3
Cat. No. ABIN2668403
Delivery 23至29个工作日
Datasheet Datasheet
Source Rabbit
Clonality Polyclonal
Epitope H3K9ac
Cat. No. ABIN2668415
Delivery 23至29个工作日
Datasheet Datasheet
Source Rabbit
Clonality Polyclonal
Epitope H3K4me3
Cat. No. ABIN2668472
Delivery 23至29个工作日
Datasheet Datasheet
Source Rabbit
Clonality Polyclonal
Epitope H3K4me3
Cat. No. ABIN3023254
Delivery 7至8个工作日
Datasheet Datasheet
Source Rabbit
Clonality Polyclonal
Epitope acLys9
Cat. No. ABIN6972014
Delivery 23至29个工作日
Datasheet Datasheet
Source Rabbit
Clonality Polyclonal
Epitope 3meLys27
Cat. No. ABIN6971918
Delivery 23至29个工作日
Datasheet Datasheet
Source Mouse
Clonality Monoclonal
Epitope H3K4me2
Cat. No. ABIN2668392
Delivery 23至29个工作日
Datasheet Datasheet
Source Rabbit
Clonality Polyclonal
Epitope 3meLys9
Cat. No. ABIN6972043
Delivery 23至29个工作日
Datasheet Datasheet
Source Rabbit
Clonality Polyclonal
Epitope H3K27ac
Cat. No. ABIN2667903
Delivery 23至29个工作日
Datasheet Datasheet
Source Rabbit
Clonality Polyclonal
Epitope C-Term
Cat. No. ABIN4889649
Delivery 23至29个工作日
Datasheet Datasheet
Source Rabbit
Clonality Polyclonal
Epitope N-Term
Cat. No. ABIN6971556
Delivery 停止生产
Datasheet Datasheet
Source Rabbit
Clonality Polyclonal
Epitope pSer727
Cat. No. ABIN2668935
Delivery 23至29个工作日
Datasheet Datasheet
Source Rabbit
Clonality Polyclonal
Epitope C-Term
Cat. No. ABIN7299460
Delivery 26至30个工作日
Datasheet Datasheet
Source Rabbit
Clonality Polyclonal
Epitope H3K4me3
Cat. No. ABIN6952351
Delivery 25至31个工作日
Datasheet Datasheet
Source Rabbit
Clonality Polyclonal
Epitope H3K27me3
Cat. No. ABIN6952338
Delivery 25至31个工作日
Datasheet Datasheet
Source Rabbit
Clonality Polyclonal
Epitope H3K27ac
Cat. No. ABIN6952337
Delivery 25至31个工作日
Datasheet Datasheet
Source Rabbit
Clonality Polyclonal
Epitope H3K9me3
Cat. No. ABIN6952362
Delivery 25至31个工作日
Datasheet Datasheet

Frequently asked Questions

How do I choose between CUT&RUN and CUT&Tag?

In CUT&Tag, sequencing primers are being attached to the cleaved DNA and no additional annealing step is necessary. It works well for nucleosomal and tightly bound proteins. The method is also less likely to produce background signal due to DNA damage.

CUT&RUN on the other hand is preferable for transcription factors (complexes) or proteins less tightly bound to DNA. It also has a better resolution than CUT&Tag.

Is it possible to use CUT&Tag with plant tissue samples?

CUT&Tag on isolated plant cells has been described for profiling of H3K4me3 histone marks in different cotton tissue types using isolated nuclei14. Our positive control H3K27me3 H3K4me3 antibodies and the negative control guinea pig anti-rabbit IgG antibody as well as the ConA beads are suitable for use with plant samples.

Can I denature the proteins in the CUT&Tag product complex instead of a proteinase K treatment?

We recommend against this option: the DNA of interest is at his point present in a complex consisting of the DNA, the protein of interest, the corresponding antibody, and the pA/G-Tn5. Boiling this complex will likely precipitate the DNA together with denatured protein. This will also primarily affect the short CUT&Tag products and not larger DNA molecules, leading to a decreased signal to noise ratio in your library and potentially also reducing the library’s complexity. This effect is further exacerbated because of the lower melting temperature of these short molecules compared to the longer contaminating DNA molecules.

Which secondary antibodies can I use for CUT&Tag?

Product
Source
Clonality
Epitope
Cat. No.
Delivery
Validations
Datasheet
Source Guinea Pig
Clonality Polyclonal
Epitope Heavy & Light Chain
Cat. No. ABIN101961
Delivery 23至28个工作日
Validations
  • (105)
  • (3)
  • (1)
Datasheet Datasheet
Source Rabbit
Clonality Polyclonal
Epitope Heavy & Light Chain
Cat. No. ABIN101785
Delivery 23至28个工作日
Validations
  • (4)
  • (1)
Datasheet Datasheet

Can I use AMPure CP beads to purify tagmentation products instead of phenol-chloroform extraction?

In the original publication describing the CUT&Tag method the authors mention the use of AMPure XP beads for the purification of the DNA subsequently to tagmentation and Proteinase K digest1. A potential issue is the carry-over of active Proteinase K, which can interfere with the downstream PCR amplification. Therefore, the authors recommend now the phenol-chloroform extraction to assure complete denaturation of Proteinase K15.

Why is the DNA yield so low?

CUT&Tag is performed using low cell numbers and the background signal is considerable lower than e.g. for ChIP. Due to these two factors the amount of recovered DNA is often times too low to be reliably measured based on a fluorometric assay or by capillary electrophoresis. PCR amplification of small CUT&RUN products, i.e. less than 50 bp, can be problematic and is therefore not an option.

In order to assess the success of the CUT&Tag method include (a) positive control sample(s) using the Positive Control H3K4m3 Antibody ABIN3023254 and/or the Positive Control H3K27me3 Antibody ABIN6923144. DNA fragments prepared using these antibodies can be measured by sensitive electrophoresis on a Bioanalyzer or Tapestation or fluorometrically on a Qubit or Nanodrop fluorometer. When using the CUT&RUN Positive Control ABIN6923144 (red dot) (or any other antibody specific for nucleosomal markers) a ladder corresponding to multiples of the 147 bp long nucleosomes should be visible by capillary electrophoresis.

Related Information and Products

CUT&RUN - cleavage under targets and release using nuclease: Information and products

CUT&Tag - Webinar

References

Tao, Feng, Zhao, Guan: "Efficient chromatin profiling of H3K4me3 modification in cotton using CUT&Tag." in: Plant methods, Vol. 16, pp. 120, (2020) (PubMed).

Meers, Bryson, Henikoff, Henikoff: "Improved CUT&RUN chromatin profiling tools." in: eLife, Vol. 8, (2019) (PubMed).

Davies, Mahnke Braam, Reznikoff, Rayment: "The three-dimensional structure of a Tn5 transposase-related protein determined to 2.9-A resolution." in: The Journal of biological chemistry, Vol. 274, Issue 17, pp. 11904-13, (1999) (PubMed).

Schmid, Durussel, Laemmli: "ChIC and ChEC; genomic mapping of chromatin proteins." in: Molecular cell, Vol. 16, Issue 1, pp. 147-57, (2004) (PubMed).

Cusanovich, Daza, Adey, Pliner, Christiansen, Gunderson, Steemers, Trapnell, Shendure: "Multiplex single cell profiling of chromatin accessibility by combinatorial cellular indexing." in: Science (New York, N.Y.), Vol. 348, Issue 6237, pp. 910-4, (2015) (PubMed).

Skene, Henikoff: "An efficient targeted nuclease strategy for high-resolution mapping of DNA binding sites." in: eLife, Vol. 6, (2018) (PubMed).

Kaya-Okur, Wu, Codomo, Pledger, Bryson, Henikoff, Ahmad, Henikoff: "CUT&Tag for efficient epigenomic profiling of small samples and single cells." in: Nature communications, Vol. 10, Issue 1, pp. 1930, (2019) (PubMed).

Henikoff, S. & Henikoff, J. G. Profiling the epigenome at home. bioRxiv 1–18 (2020). doi:10.1101/2020.04.15.043083

Bartosovic, M., Kabbe, M. & Castelo-Branco, G. Single-cell profiling of histone modifications in the mouse brain. bioRxiv 2020.09.02.279703 (2020). doi:10.1101/2020.09.02.279703

Wu, S. J. et al. Single-cell analysis of chromatin silencing programs in developmental and tumor progression. bioRxiv 2020.09.04.282418 (2020). doi:10.1101/2020.09.04.282418

Kaya-Okur, H., Henikoff, S. & Henikoff, S. Bench top CUT&Tag. protocols.io 1–19 (2019). Available at: https://www.protocols.io/view/bench-top-cut-amp-tag-z6hf9b6.
