NPM1 抗体 (C-Term)

Name: NPM1 抗体 (C-Term)
SKU: ABIN1737584
Availability: OutOfStock
Rating: 5 (3 reviews)

NPM1 适用: 人 WB, IF, IHC (p), IP, FACS 宿主: 兔 Polyclonal unconjugated

Western Blotting validation image for anti-Nucleophosmin (Nucleolar phosphoprotein B23, Numatrin) (NPM1) (AA 250-298), (C-Term) antibody (ABIN1737584) (NPM1 抗体 (C-Term))

Immunofluorescence validation image for anti-Nucleophosmin (Nucleolar phosphoprotein B23, Numatrin) (NPM1) (AA 250-298), (C-Term) antibody (ABIN1737584) (NPM1 抗体 (C-Term))

Flow Cytometry validation image for anti-Nucleophosmin (Nucleolar phosphoprotein B23, Numatrin) (NPM1) (AA 250-298), (C-Term) antibody (ABIN1737584) (NPM1 抗体 (C-Term))

FACS

Image no. 2 for anti-Nucleophosmin (Nucleolar phosphoprotein B23, Numatrin) (NPM1) (AA 250-298), (C-Term) antibody (ABIN1737584) (NPM1 抗体 (C-Term))

Image no. 1 for anti-Nucleophosmin (Nucleolar phosphoprotein B23, Numatrin) (NPM1) (AA 250-298), (C-Term) antibody (ABIN1737584) (NPM1 抗体 (C-Term))

5 images

(3 validations)

产品编号 ABIN1737584

发货至: 中国

Datasheet as PDF

抗原 See all NPM1 抗体

NPM1 (Nucleophosmin (Nucleolar phosphoprotein B23, Numatrin) (NPM1))
抗原表位
26

15

15

13

9

8

7

7

7

5

4

3

3

3

3

2

2

2

2

2

2

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1
AA 250-298, C-Term
适用
153

110

75

13

12

10

9

9

7

3

3

2

1

1
人
宿主
145

30

1

1
兔
Compatible Secondaries
克隆类型
145

33
多克隆
标记
100

13

5

4

4

4

4

4

4

3

3

3

3

3

3

3

3

3

3

3

3
This NPM1 antibody is un-conjugated
应用范围
123

62

50

39

28

27

27

13

13

10

7

7

7

5

5

4

3

3

1
Western Blotting (WB), Immunofluorescence (IF), Immunohistochemistry (Paraffin-embedded Sections) (IHC (p)), Immunoprecipitation (IP), Flow Cytometry (FACS)

特异性

Reacts with the mutant form of Nucleophosmin

纯化方法

Antigen affinity purified

免疫原

Synthetic peptide made to a C-terminal region of human mutant nucleophosmin (within residues 250-294) [AAW67752]

Top Product

Discover our top product NPM1 Primary Antibody
anti-Nucleophosmin (Nucleolar phosphoprotein B23, Numatrin) (NPM1) (AA 1-294) antibody
NPM1 适用: 人 WB, ELISA, IF, IHC (p) 宿主: 小鼠 Monoclonal 3B2 unconjugated

anti-Nucleophosmin (Nucleolar phosphoprotein B23, Numatrin) (NPM1) (AA 20-154) antibody
NPM1 适用: 人 WB, IHC, IP, ICC 宿主: 兔 Polyclonal unconjugated

anti-Nucleophosmin (Nucleolar phosphoprotein B23, Numatrin) (NPM1) (AA 212-292) antibody
NPM1 适用: 小鼠 WB, IHC, IP, ICC 宿主: 兔 Polyclonal unconjugated

anti-Nucleophosmin (Nucleolar phosphoprotein B23, Numatrin) (NPM1) (AA 185-287) antibody
NPM1 适用: 人 WB, IHC, ELISA, IF, Coat, StM 宿主: 小鼠 Monoclonal NPM1-3286 unconjugated

anti-Nucleophosmin (Nucleolar phosphoprotein B23, Numatrin) (NPM1) (pThr199) antibody
NPM1 适用: 人, 小鼠, 大鼠 WB, IHC, ELISA, IF, ICC 宿主: 兔 Polyclonal unconjugated

anti-Nucleophosmin (Nucleolar phosphoprotein B23, Numatrin) (NPM1) (AA 185-287) antibody
NPM1 适用: 人 WB, IHC, StM 宿主: 小鼠 Monoclonal rNPM1-1901 unconjugated Recombinant Antibody

anti-Nucleophosmin (Nucleolar phosphoprotein B23, Numatrin) (NPM1) (AA 185-287) antibody
NPM1 适用: 人 WB, IHC, ELISA, Coat, StM 宿主: 小鼠 Monoclonal NPM1-1902 unconjugated

anti-Nucleophosmin (Nucleolar phosphoprotein B23, Numatrin) (NPM1) (C-Term) antibody
Verified NPM1 适用: 人, 小鼠 WB, IHC, ELISA, IF 宿主: 山羊 Polyclonal unconjugated

anti-Nucleophosmin (Nucleolar phosphoprotein B23, Numatrin) (NPM1) (AA 7-33) antibody
NPM1 适用: 人 WB, IHC, ELISA, IF, FACS 宿主: 兔 Polyclonal unconjugated

anti-Nucleophosmin (Nucleolar phosphoprotein B23, Numatrin) (NPM1) (AA 198-226) antibody
NPM1 适用: 人 WB, IHC, ELISA, IF, FACS 宿主: 兔 Polyclonal unconjugated

应用备注

Working dilution: Optimal dilution should be determined by the end user.
The following are guidelines only :
FC(1:100) ICC/IF(1:50 - 1:100) IHC - P(1:50 - 1:100) IP(1:50) WB(1:1000)

限制

仅限研究用
生效 #101096 (Western Blotting)

by

Institute of Hematology and Blood Transfusion, Prague

No.

#101096

日期

2017.05.17

抗原

NPM1

Lot Number

Method validated

Western Blotting

Positive Control

OCI-AML3 cells containing the NPM1 mutation type A, HEK-293T transfected with GFP-NPM mutA

Negative Control

HL-60 cells

Notes

Passed. ABIN1737584 specifically recognizes mutated nucleophosmin in OCI-AML3 cells and NPMmut transfected HEK-293T cells.

Validation Images

A. Detection of the nucleophosmin N-terminus (NPM), NPM mutation type A C-terminus (NPMmut), or C-terminus of NPM wb (NPMwt) by three different antibodies in OCI-AML3 and HL-60 cell lysates as described in the protocol. B. Nucleophosmin detection in lysates from untransfected HEK-293T cells (-), cells transfected with GFP-NPMwt (wt), or GFP-NPMmutA (mutA) with antibodies recognizing the N-terminus (NPM), the C-terminus of NPM mutation type A (NPMmut), or the C-terminus of wt nucleophosmin (NPMwt).
Full Methods
Primary Antibody

ABIN1737584

Secondary Antibody

goat-anti rabbit antibody (LifeTechnologies, cat. No.31460)

Full Protocol

Grow OCI-AML3 (DSMZ) cells in MEM medium (Sigma-Aldrich, M8042, lot RNBF-0384) supplemented with 20% FBS (Biochrom, S0615, lot 0513C) and penicillin-streptomycin (Sigma-Aldrich, P4333, lot 066M4791V) at 37°C and 5% CO₂ in 5ml on a tissue culture dish to 1.5x10⁶ cells/ml.
Grow HL-60 (ECACC) cells RPMI medium (Sigma-Aldrich, R0883, lot RNBF-7081) supplemented with 10% FBS and penicillin-streptomycin at 37°C and 5% CO₂ in 5ml on a tissue culture dish to 1.5x10⁶ cells/ml.
Grow HEK-293T cells on DMEM medium (Sigma-Aldrich, D8062, lot RNBF-4838) supplemented with 10% FBS and penicillin-streptomycin at 37°C and 5% CO₂ in 5ml on a tissue culture dish to 60% confluency.
Transfect HEK-293T cells with plasmid containing gene for GFP-NPMwt or GFP-NPMmutA using jetPRIME transfection reagent (Polyplus Transfection, 114-15, lot 1240106I17) following the manufacturer´s instructions.
Collect 3-5x106 cells directly in 100μl 1x Laemmli SDS sample buffer, and boil them for 5min at 95°C.
Centrifuge samples at 200.000g/4°C for 4h. Take of the supernatant and store at -20°C.
Separate 10µl of each sample on a freshly cast Tris HCl pH8.8 12,5% SDS-PAGE in a Mini-PROTEAN Tetra Cell System for 1h at 200V/4°C.
Transfer proteins onto PVDF membrane (GE Healthcare, 10600023, lot A10125999) with a semi-dry blotting system for 1.5h at 100mA.
Block the membrane with 5% non-fat dry milk in PBS-Tween (0.5% v/v) for 1h at RT.
Incubation the membrane with primary
rabbit anti-mutant nucleophosmin (antibodies-online, ABIN1737584) diluted 1:1000 in 5% non-fat dry milk in PBSTON at 4°C,
mouse anti-NPM (Santa Cruz, sc-70392) recognizing the N-terminus of NPM protein (i.e. both the NPM wild-type and NPM mutant type A) diluted 1:500 in 5% non-fat dry milk in PBSTON at 4°C, or
mouse anti-NPM (Santa Cruz, sc-271737) recognizing the C-terminus of NPM wild-type protein diluted 1:500 in 5% non-fat dry milk in PBSTON at 4°C.
Wash the membrane 6x for 5min in PBST.
Incubate the membrane with secondary HRP-conjugated
goat-anti rabbit antibody (LifeTechnologies, cat. No.31460) diluted 1:50.000 in PBST for 1h at RT or
goat-anti mouse antibody (LifeTechnologies, cat. No.31430) diluted 1:50.000 in PBST for 1h at RT.
Wash membrane 6x for 5 min with PBS-Tween.
Visualize protein bands using ECL Plus detection reagent (GE Healthcare, RPN2232, lot 9732255) on a G-box iChemi XT4 digital imaging device (Syngene Europe).

Experimental Notes

The nucleophosmin antibody ABIN1737584 reveals a protein of the expected molecular weight in lysates of OCI-AML3 and of HEK-293T transfected with GFP-NPM mutA. The protein band is but not visible in the HL-60 negative control. A weak band from OCI-AML3 detected by an anti-NPMwt antibody confirms the concurrent presence of both NPMmutA and NPMwt in the OCI-AML3 cell line.
生效 #101288 (Immunofluorescence)

by

Institute of Hematology and Blood Transfusion, Prague

No.

#101288

日期

2017.05.17

抗原

NPM1

Lot Number

Method validated

Immunofluorescence

Positive Control

OCI-AML3 cells containing the NPM1 mutation type A

Negative Control

HL-60 cells

Notes

Passed. ABIN1737584 specifically recognizes mutated nucleophosmin in sample.

Validation Images

Staining of PFA fixed OCI-AML3 and HL-60 cells with ABIN1737584 recognizing the C-terminus of NPM mutation type A (green) and a different antibody specific for the NPM N-terminus (red). Counterstaining of the nuclei with Hoechst33342 (blue). Bars represent 10µm.
Full Methods
Primary Antibody

ABIN1737584

Secondary Antibody

AlexaFluor488-conjugated goat anti-rabbit antibody (LifeTechnologies, A31627, lot 1440410)

Full Protocol

Grow OCI-AML3 (DSMZ) cells in MEM medium (Sigma-Aldrich, M8042, lot RNBF-0384) supplemented with 20% FBS (Biochrom, lot 0513C) and penicillin-streptomycin (Sigma-Aldrich, P4333, lot 066M4791V) at 37°C and 5% CO₂ in 5ml on a tissue culture dish to 1.5x10⁶ cells/ml.
Grow HL-60 (ECACC) cells RPMI medium (Sigma-Aldrich, R0883, lot RNBF-7081) supplemented with 10% FBS and penicillin-streptomycin at 37°C and 5% CO₂ in 5ml on a tissue culture dish to 1.5x10⁶ cells/ml.
Wash 10⁶ cells with PBS, resuspend them in 150µl PBS and apply the suspension on a coverslip in a humidified chamber for 20min.
Aspirate PBS with thick filter paper.
Apply 4% paraformaldehyde for 1h at RT.
Wash the coverslip briefly with PBS and apply 0.2% Triton X-100 for 10min at RT.
Wash the coverslip 3x for 5 min with PBS-Tween (PBS, Tween 20 0.2% v/v).
Incubate the coverslip with image iT-signal enhancer (LifeTechnologies, from A31627 kit) for 30min at RT.
Wash the coverslip 3x for 5min with PBST.
Incubate the coverslip with primary rabbit anti-mutant nucleophosmin(antibodies-online, ABIN1737584) diluted 1:100 and mouse monoclonal anti-NPM (Santa Cruz, sc-70392) diluted 1:50 in PBST for 1h at RT.
Wash the coverslip 3x for 5 min with PBST.
Incubation the coverslip with secondary AlexaFluor488-conjugated goat anti-rabbit antibody (LifeTechnologies, A31627, lot 1440410), AlexaFluor647-conjugated goat anti-mouse antibody (LifeTechnologies, A31625, lot 1626792) diluted 1:200 and 1µM Hoechst33342 in PBST for 1h at RT in the dark.
Wash the membrane 2x for 5min with PBST.
Wash the membranc for 5 min in PBS.
Apply 10µl of ProLong Gold Antifade Mountant (LifeTechnologies, P36930) on a microscope slide and attach it to a coverslip. Dry ON.
Visualize the fluorescence signal under confocal laser scanning microscope FluoView FV1000 (Olympus Corporation) at 60x/1.35 oil objective.

Experimental Notes

The nucleophosmin antibody ABIN1737584 reveals a protein of the expected (cytoplasmic) localization of antigen in OCI-AML3 cell line. The protein is only visible in the positive but not the negative control (HL-60).
生效 #101289 (Flow Cytometry)

by

Institute of Hematology and Blood Transfusion, Prague

No.

#101289

日期

2017.05.17

抗原

NPM1

Lot Number

Method validated

Flow Cytometry

Positive Control

OCI-AML3 cells containing the NPM1 mutation type A

Negative Control

HL-60 cells

Notes

Passed. ABIN1737584 specifically recognizes mutated nucleophosmin in OCI-AML3 cells.

Validation Images

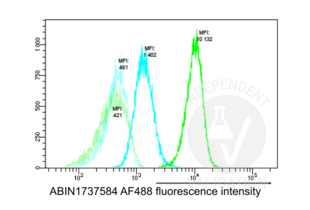

OCI-AML3 (green lines) and HL-60 (cyan lines) cells were stained with antibody recognizing C-terminus of NPM mutation type A (ABIN1737584, full lines) or normal rabbit IgG (dotted lines) as described in the protocol.
Full Methods
Primary Antibody

ABIN1737584

Secondary Antibody

AlexaFluor488-conjugated goat anti-rabbit antibody (LifeTechnologies, A31627, lot 1440410)

Full Protocol

Grow OCI-AML3 (DSMZ) cells in MEM medium (Sigma-Aldrich, M8042, lot RNBF-0384) supplemented with 20% FBS (Biochrom, S0615, lot 0513C) and penicillin-streptomycin (Sigma-Aldrich, P4333, lot 066M4791V) at 37°C and 5% CO₂ in 5ml on a tissue culture dish 1.5x10⁶ cells/ml.
Grow HL-60 (ECACC) cells RPMI medium (Sigma-Aldrich, R0883, lot RNBF-7081) supplemented with 10% FBS and penicillin-streptomycin at 37°C and 5% CO₂ in 5ml on a tissue culture dish 1.5x10⁶ cells/ml.
Wash 5x10⁵ cells with PBS, resuspend them in 200µl of 4% paraformaldehyde.
Incubate for 15min at RT.
Centrifuge 5min/500g/RT, aspirate the supernatant.
Resuspend cells in 50µl of ice-cold PBS and add 450µl of ice-cold methanol.
Store resuspended cells at -20°C for at least 30min (max 30 days).
Wash the cells 2x with PBS-BSA (1% BSA in PBS) and centrifuge them for 5min/500g.
Resuspend cells in 200µl PBS-BSA.
Incubate cells for 20min at RT.
Incubate cells with primary antibody
rabbit anti-mutant nucleophosmin(antibodies-online, ABIN1737584) diluted 1:100 in PBS-BSA for 1h at RT or
normal rabbit IgG (Santa Cruz, sc-2027) as negative staining control diluted 1:100 in PBS-BSA for 1h at RT.
Wash the cells 2x with PBS-BSA (1% BSA in PBS) and centrifuge them for 5min/500g.
Resuspend cells in 200µl PBS-BSA.
Incubate cells with secondary AlexaFluor488-conjugated goat anti-rabbit antibody (LifeTechnologies, A31627, lot 1440410) diluted 1:200 in PBS-BSA for 1h at RT.
Wash the cells 2x with PBS-BSA (1% BSA in PBS) and centrifuge them for 5min/500g.
Resuspend pellet in 300µl PBS and acquire AlexaFluor488 signal on flow-cytometer (BD Fortessa).

Experimental Notes

The nucleophosmin antibody ABIN1737584 reveals a strong fluorescence signal from OCI-AML3 cell line. Only moderate signal is obtained from the negative control (HL-60) and no signal is detected with non-specific primary antibody (normal rabbit IgG).
状态

Liquid

浓度

1 mg/mL

缓冲液

PBS pH 7.4, 0.02 % sodium azide

储存液

Sodium azide

注意事项

This product contains Sodium azide: a POISONOUS AND HAZARDOUS SUBSTANCE which should be handled by trained staff only.

储存条件

4 °C/-20 °C

储存方法

Short term storage at +4°C. For extended periods store in aliquots at -20°C. Antibodies are guaranteed for 6 month from date of receipt.

有效期

6 months
抗原

NPM1 (Nucleophosmin (Nucleolar phosphoprotein B23, Numatrin) (NPM1))

别名

Nucleophosmin (NPM1 产品)

别名

B23 antibody, NPM antibody, NO38 antibody, Npm antibody, B23NP antibody, npm4 antibody, npm antibody, CG7917 antibody, CRP1 antibody, Crp1 antibody, Dmel\\CG7917 antibody, dNLP antibody, dNLP-S antibody, p22 antibody, npm1 antibody, sb:cb487 antibody, nucleophosmin 1 antibody, nucleophosmin (nucleolar phosphoprotein B23, numatrin) L homeolog antibody, nucleophosmin 1b antibody, Nucleophosmin antibody, nucleophosmin antibody, nucleophosmin (nucleolar phosphoprotein B23, numatrin) antibody, Nucleoplasmin antibody, nucleophosmin 1a antibody, NPM1 antibody, Npm1 antibody, npm1.L antibody, npm1b antibody, npm antibody, Nlp antibody, npm1a antibody

背景

Nucleophosmin (NPM) is a multi-functional protein that is involved in many cellular activities including cell growth, proliferation and transformation. It is frequently overexpressed in solid tumors, and has recently been found to be mutated and aberrantly localized in the cytoplasm of leukaemic blasts in patients with acute myeloid leukemia (AML).

基因ID

4869

途径

Ribonucleoprotein Complex Subunit Organization, Ribosome Assembly
